EARTHMOVING / EXCAVATING

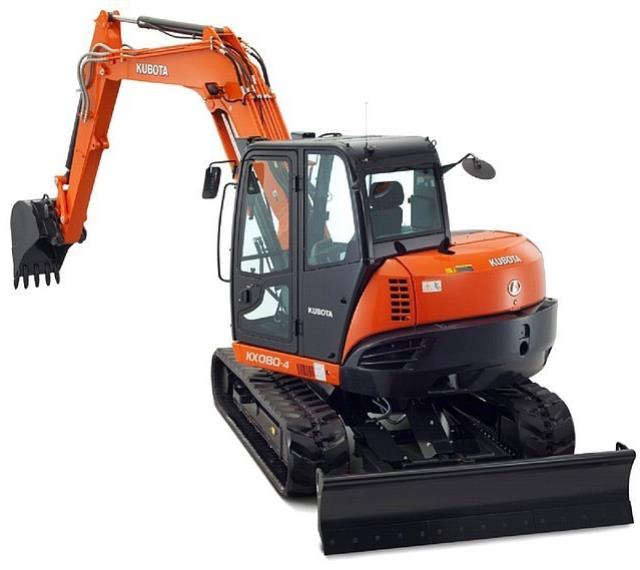

MINI EXCAVATOR 18,000LB, 8TON
 Image for reference only  Click on above thumbnails for alternate view | |
Daily: CA$595.00
Weekly: CA$2,095.00
Monthly: CA$5,395.00
Additional Information
- Make Kubota
- Model V3307-CR-TE4
- Output (SAE J1995 gross) HP (kw)/rpm 70.0 (52.2) / 2000
- Output (SAE J1349 net) HP (kW)/rpm 67.3 (50.2) / 2000
- Displacement cu. in. (cc) 203.3 (3331)
- DIMENSIONS
- Overall length ft. in. (mm) 21'1.9" (6450)
- Overall height ft. in. (mm) 8'4" (2540)
- Overall width
- Rubber ft. in. (mm) 7'2.6" (2200)
- Steel ft. in. (mm) 7'2.6" (2200)
- Wide steel ft. in. (mm) 7'8.6" (2350)
- Min. Ground clearance in. (mm) 14.0 (355)
- HYDRAULIC SYSTEM
- Pump capacity gpm (l/min) 19.0 (72.0) Variable × 2 / 17.6 (66.6) Gear ×1
- Auxiliary hydraulic flow GPM (l/min) 26.4 (100) / 17.6 (66.6)
- Max. breakout force
- Bucket lbs. (kgf) 14660 (6650)
- Arm lbs. (kgf) 8554 (3880)
- DRIVE SYSTEM
- Travel speed
- Low lbs. (km/h) 1.7 (2.7)
- High lbs. (km/h) 3.0 (4.8)
- Max. traction force
- Low speed lbs. (kgf) 14878 (6750)
- Tumbler distance ft. in. (mm) 7'6.6" (2300)
- Crawler length ft. in. (mm) 9'6.2" (2900)
- Shoe width
- Rubber in. (mm) 17.7" (450)
- Steel in. (mm) 17.7" (450)
- Wide steel in. (mm) 23.6" (600)
- Ground contact pressure
- Rubber psi (kgf/cm2) 5.22 (0.367)
- Steel psi (kgf/cm2) 5.25 (0.369)
- Wide steel psi (kgf/cm2) 4.0 (0.281)
- SWING SYSTEM
- Unit swing speed rpm 10.2
- Boom swing angle
- Left degree 70
- Right degree 60
- BLADE
- Dimensions
- Width / with extensions ft. in. (mm) 7'2.6" (2200) / 7'8.6" (2350)
- Height ft. in. (mm) 1'7.7 (500)
- Maximum lift above ground 19.7" (500)
- Maximum drop below ground 19.7" (500)
- Angle degree -
- OTHER
- Hydraulic oil
- Reservoir gal (l) 19.8 (75)
- System gal (l) 35.7 (135)
- Fuel tank capacity gal (l) 30.4 (115)
- Operating weight (Including operator’s weight @ 175 lbs.)
- Rubber lbs. (kg) 18254 (8280)
- Steel lbs. (kg) 18364 (8330)
- Wide steel lbs. (kg) 18475 (8460)
Prices are subject to change. Applicable sales tax, delivery, and other fees are not included in this price estimate.
Please call us for any questions on our mini excavator 18 000lb 8ton rentals in Ladner and Tilbury, serving Vancouver, British Columbia.
